Features

How It Works (Workflow Breakdown)

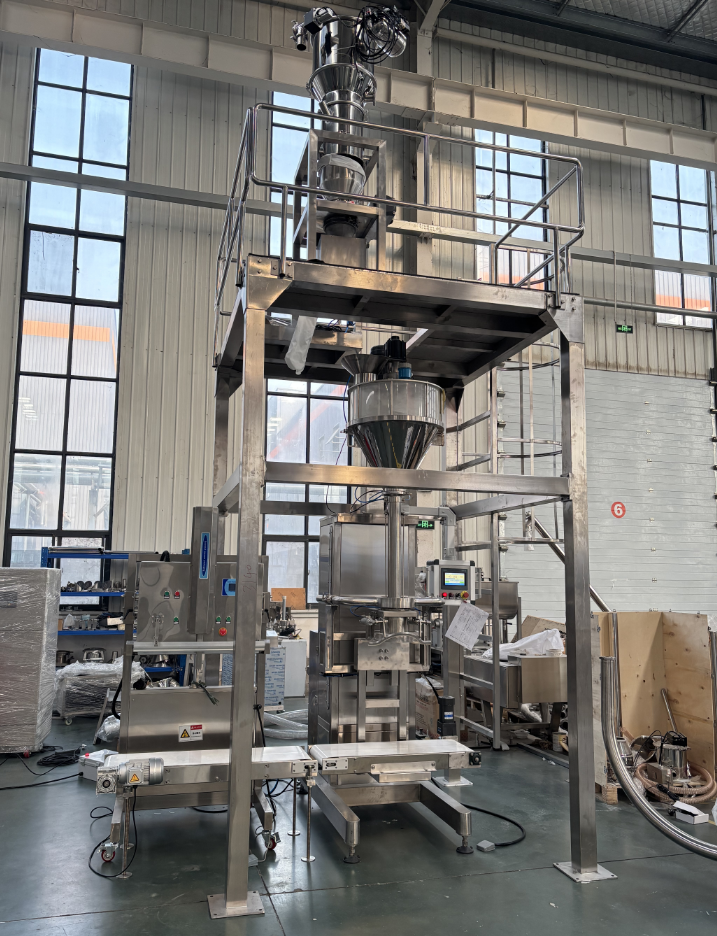

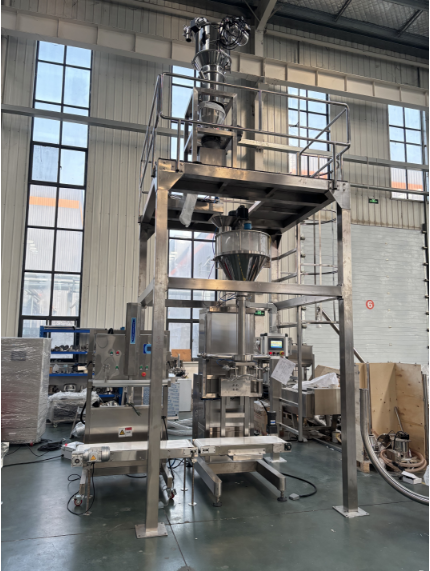

1. Automatic Material Feeding Powder is automatically fed into the stainless steel hopper via an external conveying system, ensuring a continuous, smooth supply for non-stop production.

2. Bottom-Up Filling (Core Technology) The auger nozzle descends into the bottom of the open bag, filling powder from the bottom up. This eliminates floating dust caused by high-altitude pouring and prevents powder segregation.

3. Precision Weighing & Auger Control Integrated with high-precision load cells and servo-driven auger system, the machine continuously adjusts the screw speed based on real-time weight feedback, ensuring every bag meets the target weight.

4. Bag Sealing & Discharge After filling, the bag is conveyed to the sealing station (heat-sewing or heat-sealing optional) and then discharged onto the finished product conveyor for collection.

Technical Data

Applicable materials	Powder, mixed materials
Hopper volume	100L
Measuring range	5-25 kg
Packing accuracy	±0.004%
Packing speed	2-6 bags/min
Feeding method	Vertical screw
Air source pressure	0.4-0.6Mpa
Air consumption	0.1 m3/min
Weight	300KG
Power supply/power	380V/3.5KW
Dimensions (cm)	85×110×320

FREE CUSTOMIZATION, ASK FOR A QUOTE NOW !

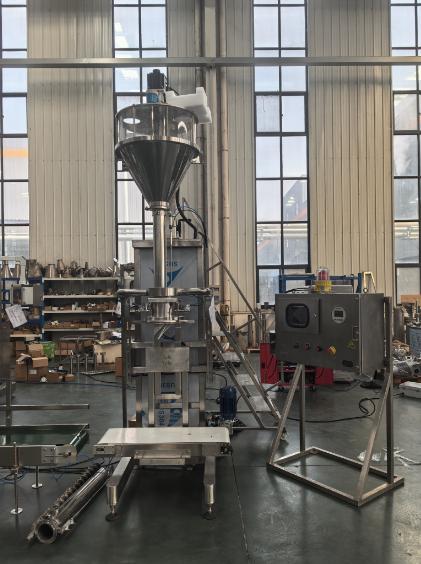

Ideal for large-batch powder packaging, our 25kg Bottom-Up Auger Filling & Packing Machine is engineered for ultra-high precision, zero-dust operation, and reliable industrial performance. It is the perfect solution for 10–25kg bulk powder packaging across industries like food, chemicals, pharmaceuticals, and agriculture.

Key Advantages

1. Industry-Leading Accuracy: ±1g Error for 25kg Bags Equipped with a closed-loop weight feedback system, it delivers an ultra-tight tolerance of just ±1g for 25kg packages. This eliminates material waste and ensures consistent product quality for your customers.

2. Zero-Dust, Bottom-Up Filling Design By inserting the auger nozzle deep into the bag and filling from the bottom up, the machine prevents powder from being blown into the air. This keeps your factory clean, protects workers from dust exposure, and reduces product loss.

3. Stainless Steel Construction for Hygiene & Durability All contact parts are made of 304/316 stainless steel, making it easy to clean and resistant to corrosion. It meets strict hygiene standards for food and chemical applications.

4. Wide Compatibility with Various Powders Suitable for a wide range of free-flowing and semi-free-flowing powders, including milk powder, flour, spices, chemical powders, fertilizer, and more.

5. PLC Control & User-Friendly Operation The system is controlled by a PLC with a touchscreen interface, allowing you to easily set parameters like target weight, filling speed, and bag size. It also features fault diagnosis and automatic alarm functions for easy maintenance.

Technical Highlights

Filling Range: 10–25kg;
Weight Accuracy: ±1g for 25kg bags;
Filling Speed: Up to 10–15 bags per minute (depending on powder characteristics);
Dust Control: 100% dust-free filling via bottom-up technology;
Material: Food-grade stainless steel (304/316L);
Control System: PLC + Touchscreen with English interface.

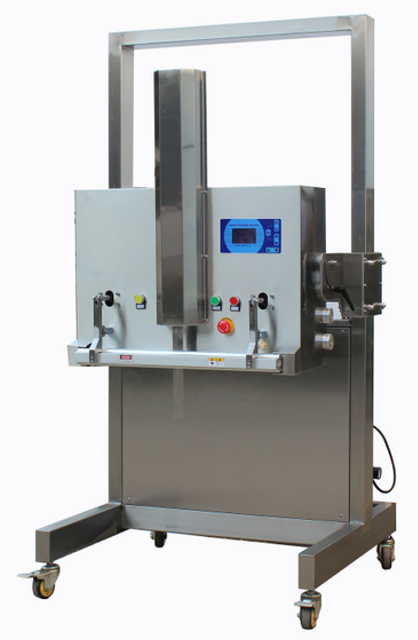

AT-600-OL Inclined Vacuumized Nitrogen Flushing Machine

This machine is currently one of the most advanced external vacuum packaging machines in China.

Features
1. Small, suitable for places with narrow working space;
2. The vacuuming speed is extremely fast, ordinary products can be drained in only 2-3 seconds, and the sealing is flat and firm;
3. One machine with 8 working modes.
4. The machine can be filled with inert gas or mixed gas packaging (optional) according to the actual use of the customer. Inflation function: inflate gas (CO2, N2, etc.) to make food or other products anti-acidification, Anti-corrosion, preservation;
5. The overall shape adopts stainless steel structure, which is not rusty, hygienic and durable, and can work in humid environments;
6. The height and angle of the shelf are adjustable; it can be moved by pulleys;
7. Equipped with precision vacuum sensor and timer function, can freely adjust the vacuum degree (unit: kpa) and vacuum gas filling time (time unit (minimum) 0.1 second);

Technical parameters

Model	AT-600-OL
Sealing size (mm)	600×8
Vacuum pump and power	Oil-free pump, oil pump 0.37/0.75kw, pneumatic pump
Heat sealing power	1kw
Machine size (mm)	950×960×1800
Voltage/frequency	220V/380V，50/60Hz

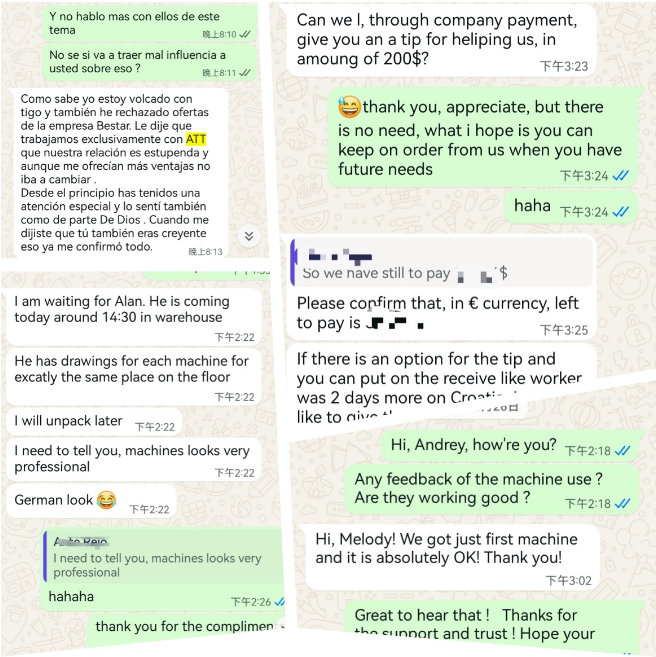

Customer Reviews

Engineer in oversea customer's plant for machine debugging and training

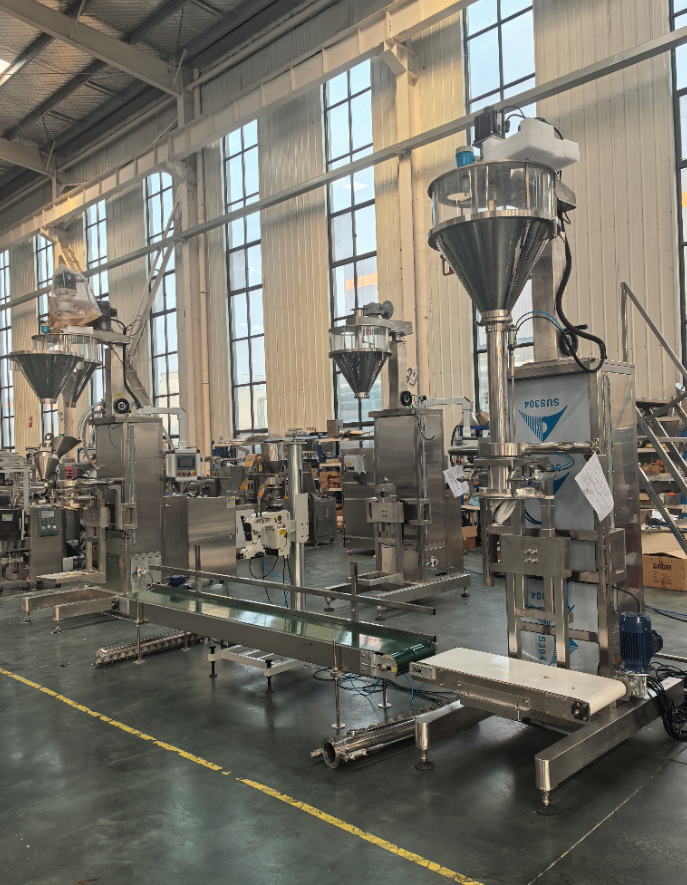

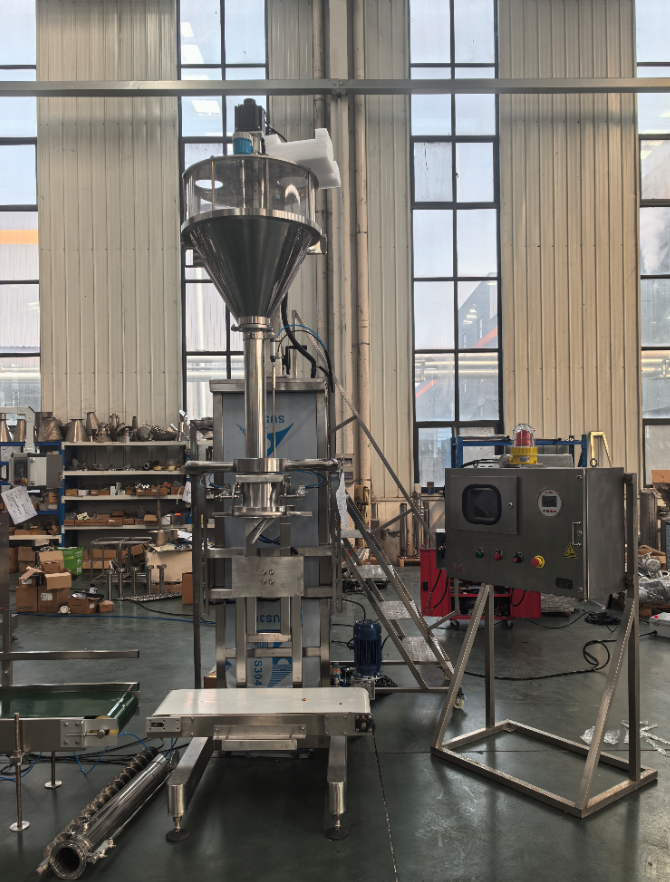

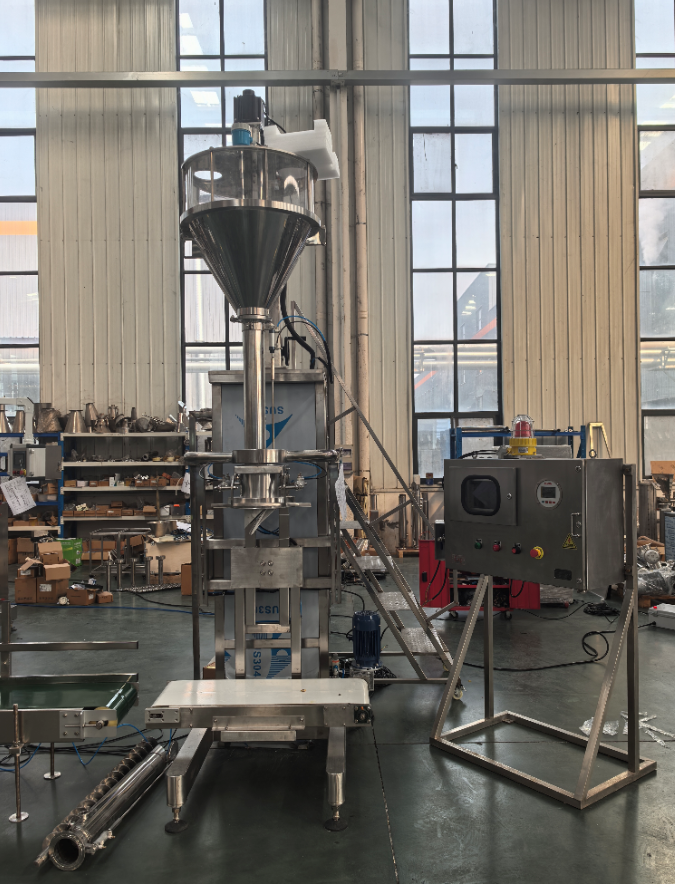

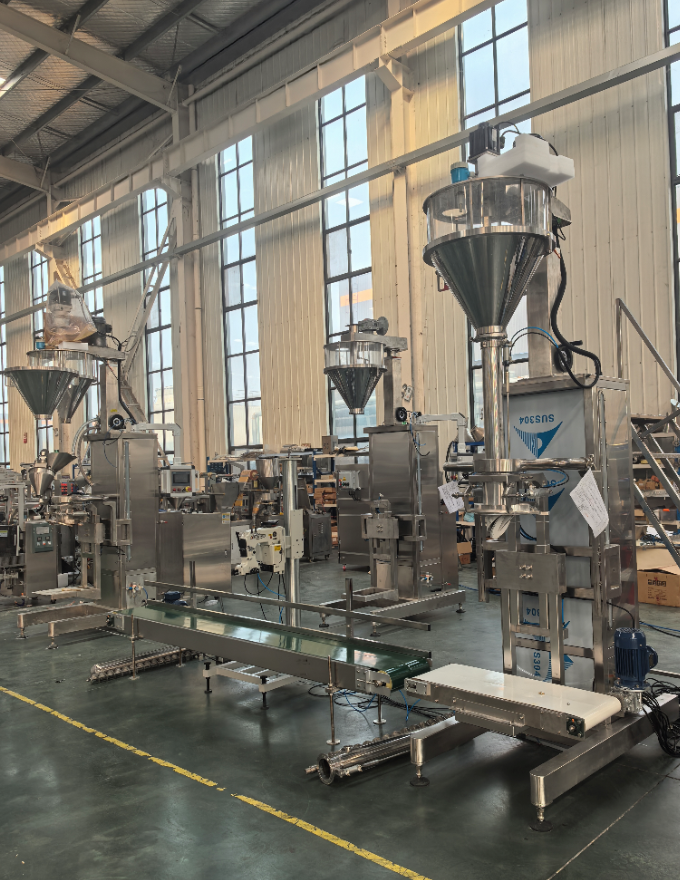

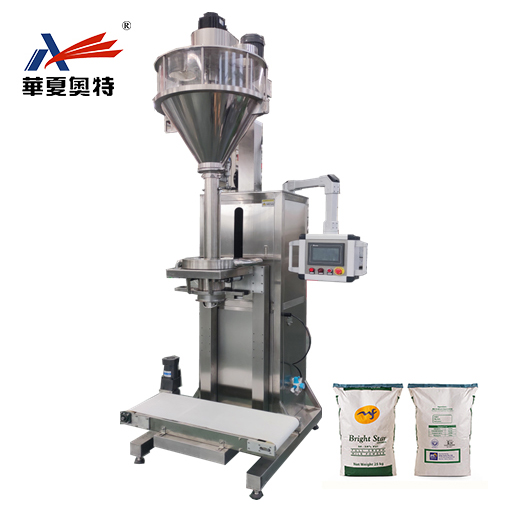

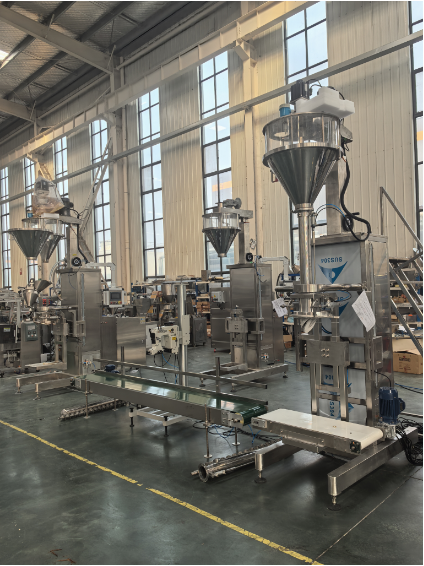

25kg Auger Powder Bottom Up Filling Machine

Application:
This packaging machines is a new generation of intelligent packaging machines developed by our company. It uses the principle of electronic weighing to weigh and package materials, adopts a servo feeding system, with fast, medium and slow three-speed spiral feeding methods.
