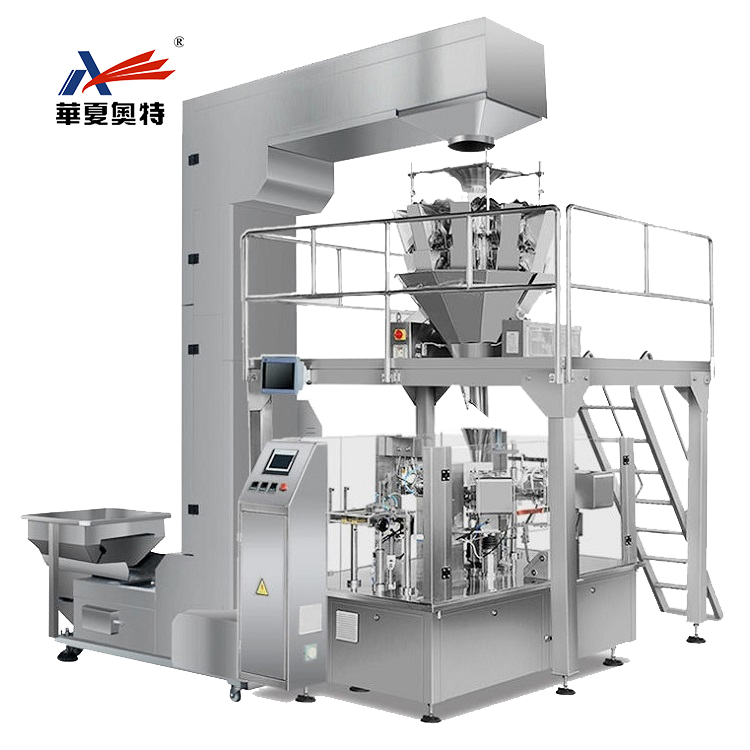

AT- GDK Doypack Packaging Machine for Premade Bags Multihead Weigher

This packaging machine adopts a multihead weigher for weighing and filling, Widely used in food industry for snacks, puffed food, nuts, candy, frozen food, granular and flake materials ; also applicable to small hardware, plastic parts and other granular items automatic packaging.

Multihead weigher and various numbers of electronic scales are available for selection according to the packaging materials and speed requirements. The loading mechanism adopts a bucket loading machine, which has the functions of automatic filling of material shortage and automatic stop when the material is full.

Send Email

Introduction

Technical parameters

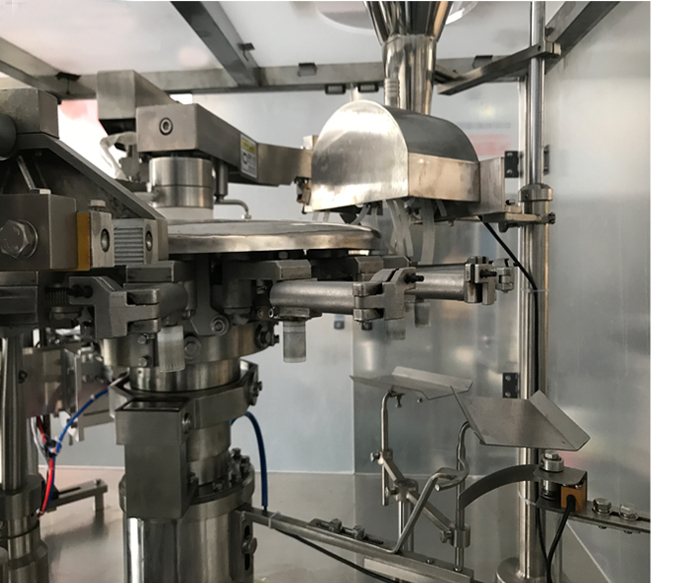

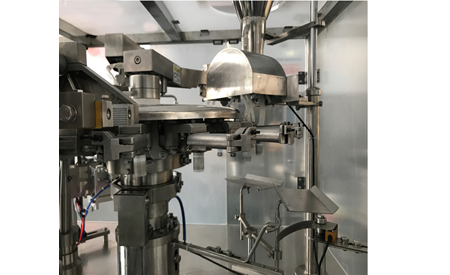

Details and Application

Features

1.Siemens PLC control system, touchable screen, easy to operate.
2. 10 heads combined scales, wide range of packaging: suitable for granular and blocks of various shapes, status and properties;
3.Conveniently: the replacement of the packing materials can be completed in about ten minutes;
4.Perfect prevention system to ensure performance and not waste bags and materials;
5.The packaging part of the machine is made of stainless steel to ensure hygiene and safety of material;
6.High degree of automation: unmanned in the entire weighing and packaging process;
7.Imported engineering plastic bearings are used, no need to refuel and maintenance-free, reducing pollution of materials.

Technical parameters

Filling range	5-1500g
Filling speed	0-40Bags/min
Bag size	L:100-350mm W:80-210mm
Compressed air consumption	0.4 m³ / min
Voltage/power	380V，50HZ
Weight	1060KG
Voltage power	1.5KW
Dimensions (mm)	1650(L)1380(W)1500(H)

Application Bag Types:
TOP Y Automatic Doypack Bag Stand up Pouch Packaging Detergent Oil Juice Ketchup Paste Sauce Filling Liquid Packing Machine

TOP Y Automatic Doypack Bag Stand up Pouch Packaging Detergent Oil Juice Ketchup Paste Sauce Filling Liquid Packing Machine

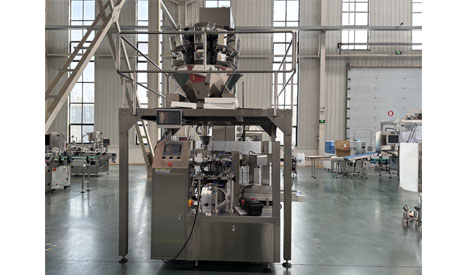

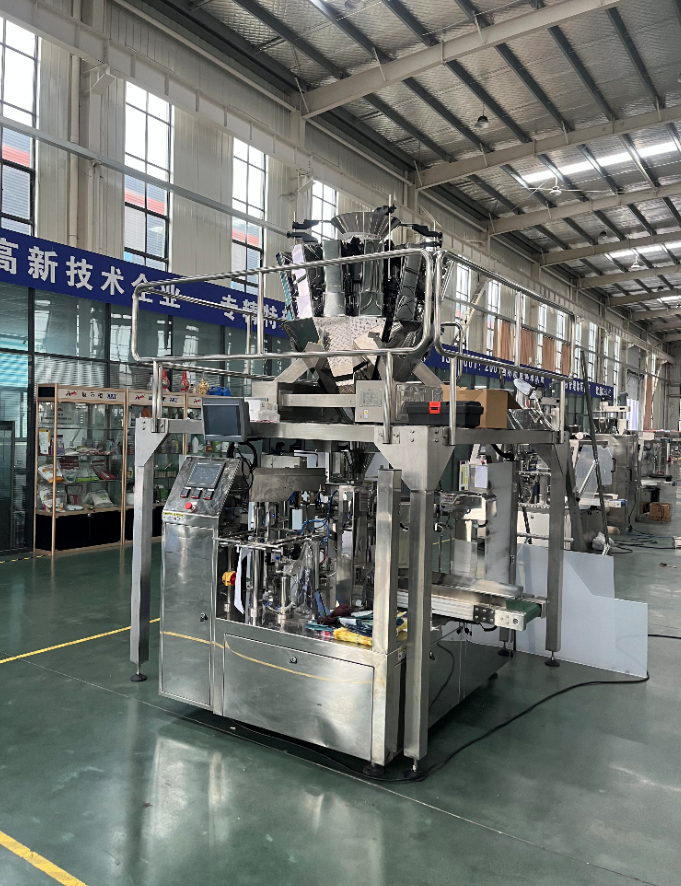

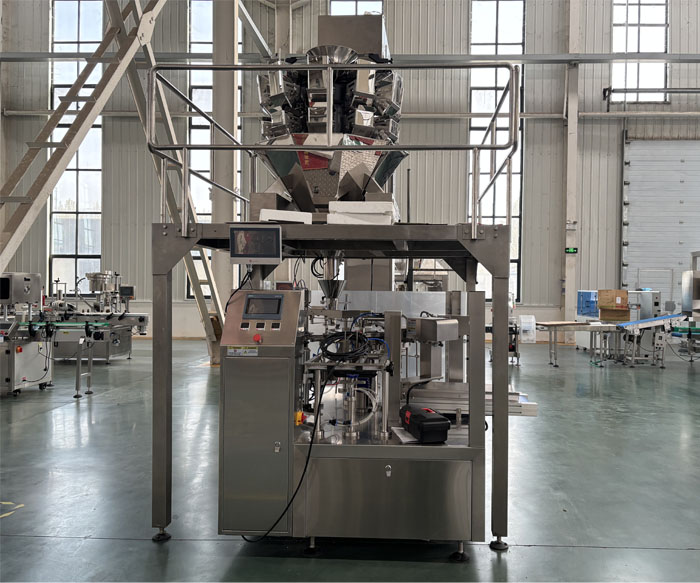

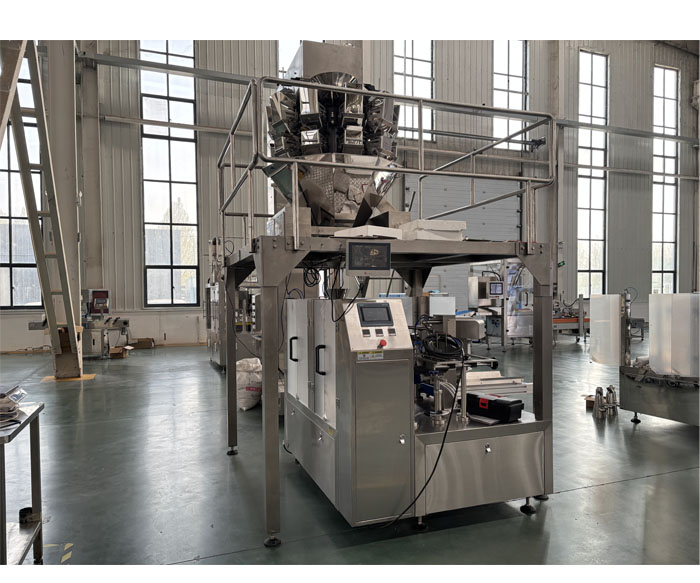

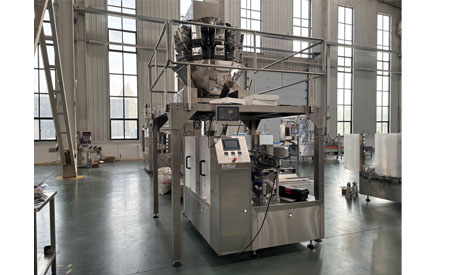

8-Station Combination Scale Rotary Bag Feeding Machine

This machine adopts 8-station rotary design, integrated with high-precision combination weigher, realizing fully automatic packaging operation. It completes bag taking, bag opening, weighing filling, sealing, coding and finished product output in one time, with stable operation, high weighing accuracy and fast packing speed, effectively improving production efficiency and reducing manual input. Adopting PLC touch screen control, it has simple operation, strong adaptability to various premade bags, and meets food safety and hygiene standards.

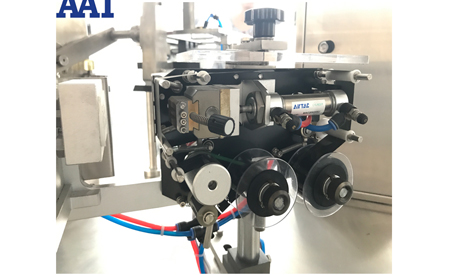

Production Flow Chart: Bag Feeding → Bag Opening → Weighing Filling → Bag Arranging → Sealing → Date Coding → Cooling Shaping → Finished Product Discharging

Application packing scope:

Widely used in food industry for snacks, puffed food, nuts, candy, frozen food, granular and flake materials; also applicable to small hardware, plastic parts and other granular items automatic packaging.

Details and Application

AT-GDF Automatic Pouch Packaging Machine for Powder Doypacks

Suitable for the automatic packaging of premade bags and pouches powder products, which consists of fully automatic rotary bag packaging machine, screw powder filling machine and screw hoist.
