AT-GDF Automatic Pouch Packaging Machine for Powder Doypacks

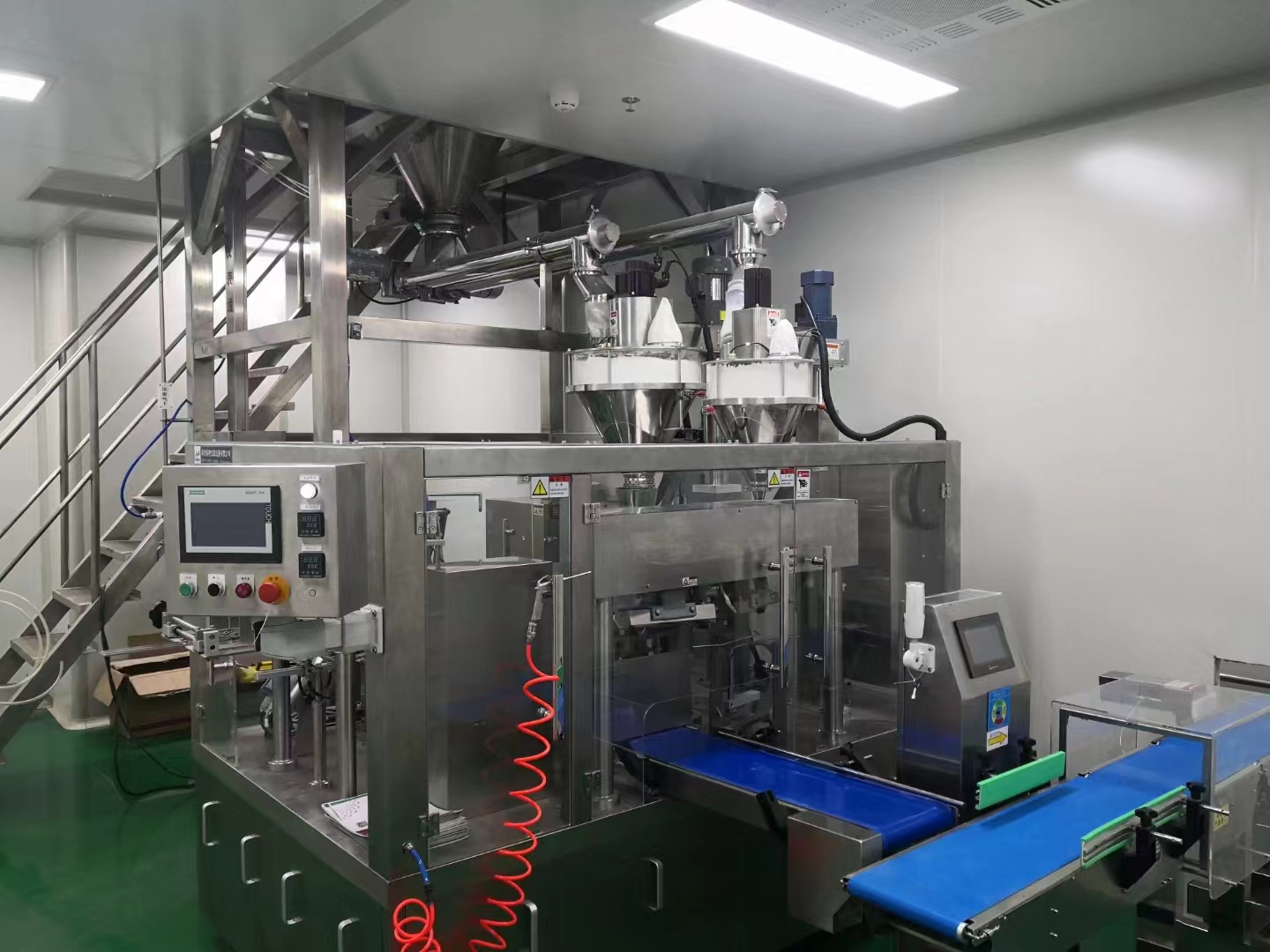

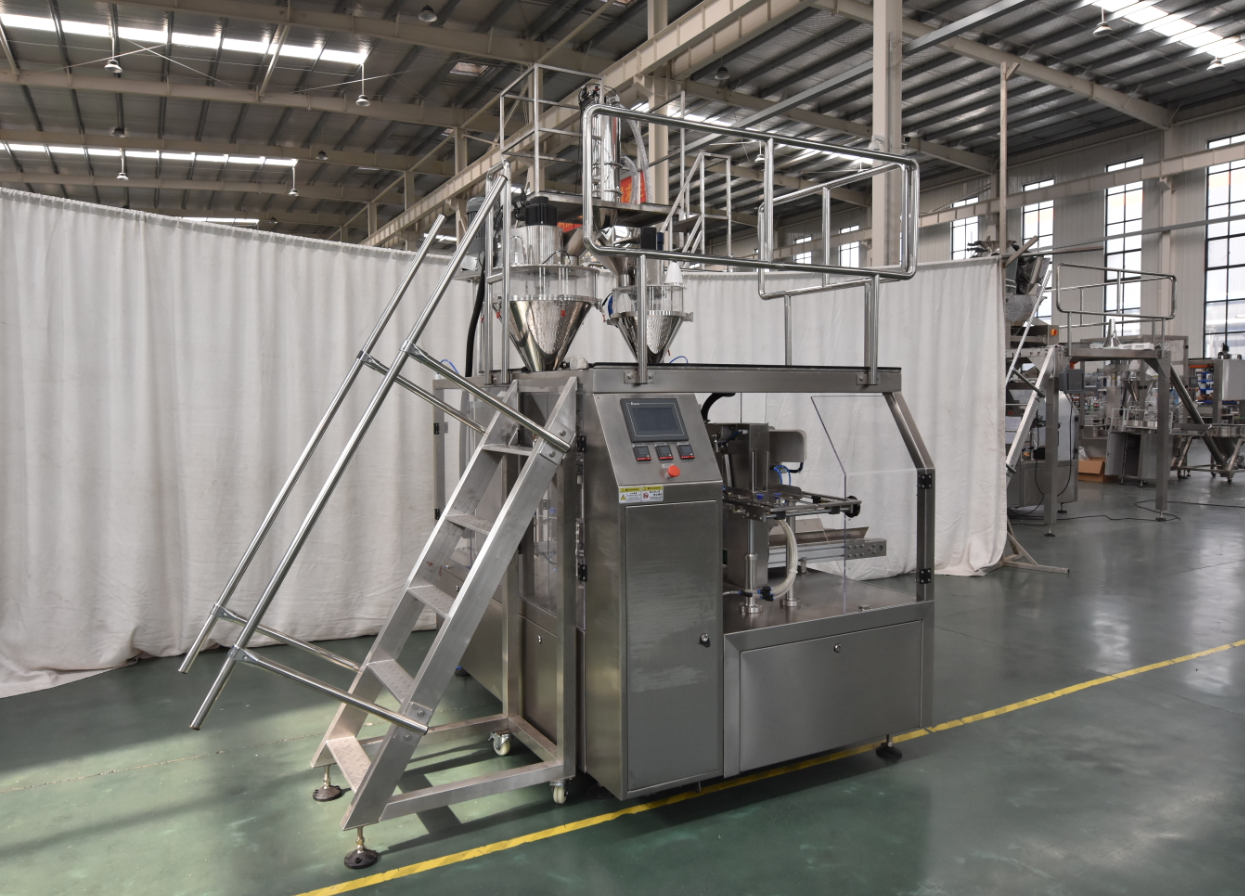

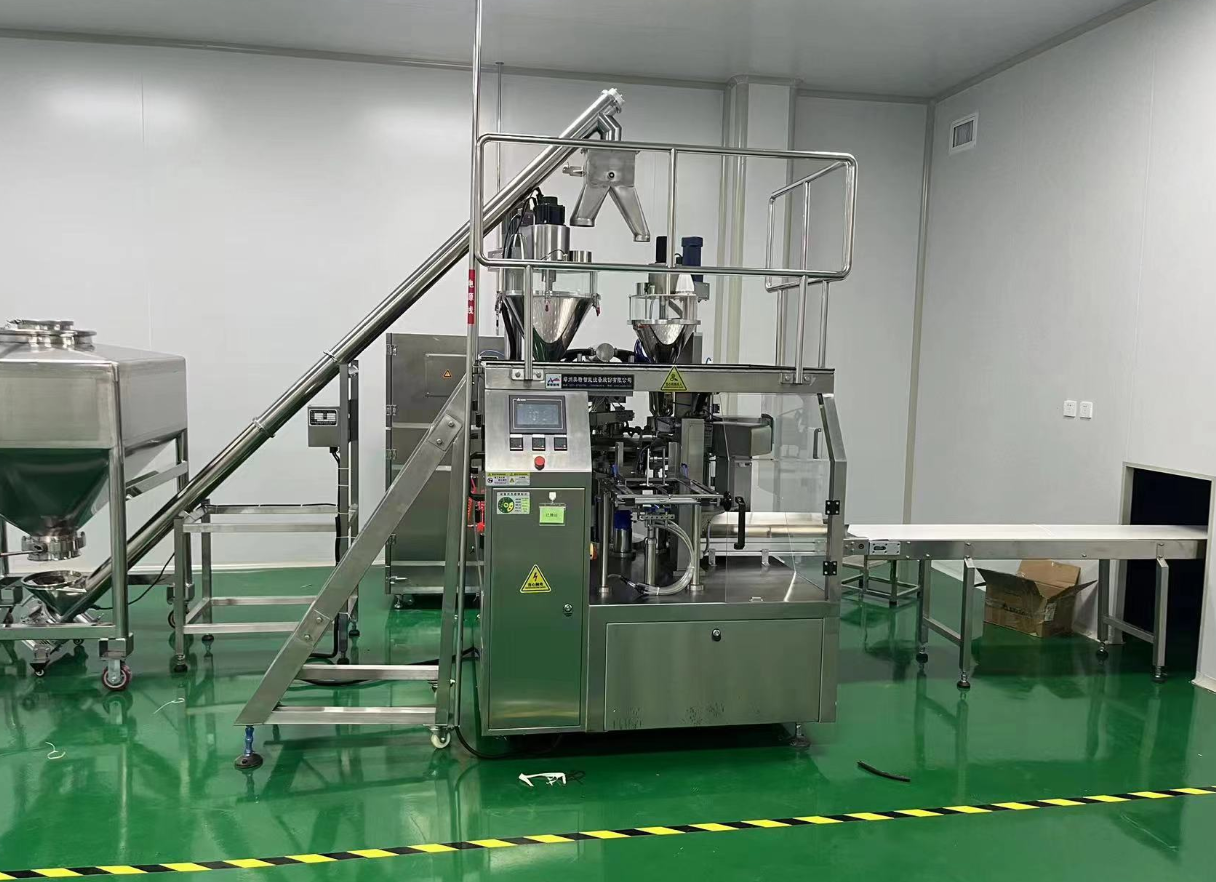

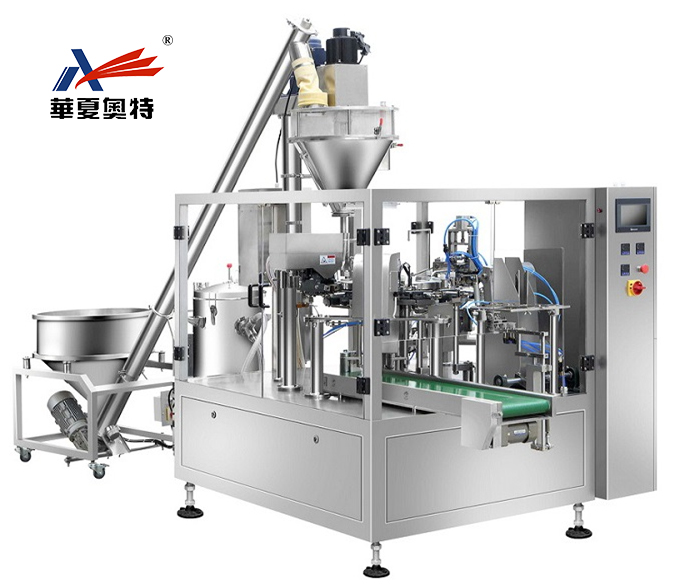

This set of equipment is mainly suitable for automatic packaging of pouch and premade bags powder products, which consists of fully automatic rotary bag packaging machine, screw powder filling machine and screw hoist.
8-Station Rotary Powder Pouch Packing Machine

This automatic 8-station rotary doypack packaging machine is designed for powder products into pouches and bags, integrating bag picking, opening, auger filling, heat sealing and discharging . It features stainless steel construction, PLC touchs creen control, and dust-free operation, with speed 20–55 bags/min . Supports stand-up/zipper pouches (100–260mm width) .

Production Flow Chart:

Bag Feeding → Date Coding → Pouch Opening → Auger Filling → Heat Sealing → Cooling → Discharging

Application Range

- Food: Milk powder, coffee powder, flour, seasoning, protein powder
- Chemical: Detergent powder, pesticide powder, fertilizer
- Pharmaceutical: Herbal powder, health-care powder

Send Email

Introduction

Technical parameters

Details

Features

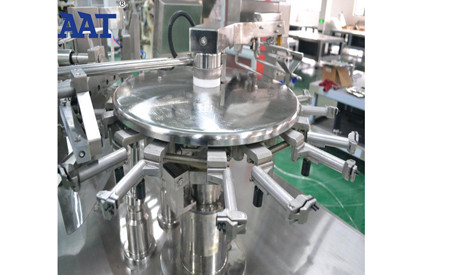

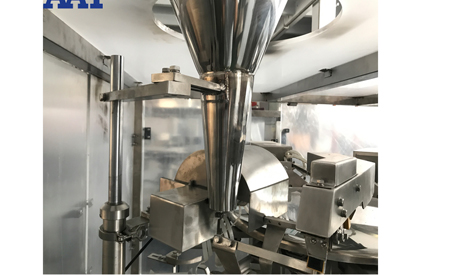

It is suitable for automatic metering and packaging of powdered materials such as milk powder, coffee powder, seasonings, additives, veterinary drugs and pesticides. The packaging process is as follows: 1. Automatic bag picking → 2. Production date printng → 3. Open bag → 4. Filling material → 5. Bag dust removal → 6. First seal → 7. Secondary sealing or sealing plastic → 8. Falling bags.

Technical parameters

Weighing range	10-1000g (requires replacement of screw accessory)
Packing speed	10-50 bags/min
Weight	1060 kg
Voltage / power	Three-phase 380V 50HZ, 3.6kw
Dimensions	L1800×W1400×H2200mm
Packaging material	Composite film, PE, PP, etc.
Bag size	L:100-350mm W:80-220mm
Air consumption	0.6 m3/min

Application Bag Types:
TOP Y Automatic Doypack Bag Stand up Pouch Packaging Detergent Oil Juice Ketchup Paste Sauce Filling Liquid Packing Machine

TOP Y Automatic Doypack Bag Stand up Pouch Packaging Detergent Oil Juice Ketchup Paste Sauce Filling Liquid Packing Machine

Core Advantages:

1. High Efficiency & Output
8‑station split process enables parallel operation; speed 25–55 bags/min (2–3× faster than 6‑station machines). Saves labor (1 operator vs 5+ manual).

2. High Precision & Dust‑proof
Servo auger filler with ±0.5–1% accuracy; anti‑spill devices and air jets keep sealing surfaces clean, preventing leakage.

3. Flexibility & Versatility
Handles 100–260mm width pouches (stand‑up, zipper, spout); supports food, chemical, pharmaceutical powders. Modular design allows adding nitrogen flushing, vacuum, or vibration modules.

4. Durability & Easy Maintenance
Full 304 stainless steel frame; PLC touchscreen with self‑diagnosis; tool‑less changeover, easy cleaning, low downtime.

5. Cost‑effectiveness
Reduces material waste (no film scrap); lowers labor and maintenance costs; improves shelf appeal with premium pouches.

Suitable for industry powder:

- Food: Milk powder, coffee, flour, seasoning, protein powder.
- Chemical: Detergent powder, pesticide, fertilizer, pigment.
- Pharmaceutical: Herbal powder, health supplements, fine chemicals.
